| L measurement: | 300 mm |
Sacrificial anode for Hull & transom anodes, made of zinc to mitigate galvanic corrosion and extend service life of immersed metals. Related: Ánodo para casco y tapa trasera · Plates
Alloy selection: zinc (saltwater), aluminum (brackish) and magnesium (freshwater). Replace at ~50% depletion.
Install on a clean metallic surface with electrical continuity; check torque.
Inspect every 6 months/100 hours or after long lay-ups.
Which alloy for my waters?
Zinc (salt), aluminum (brackish) and magnesium (fresh). If unsure, consult the manufacturer alloy table.
When should I replace it?
When ~50% has depleted, or at least once per season.
Can I mix alloys?
Not recommended: it can alter potential and reduce protection.
Where to find related parts?
Browse Hull & transom anodes

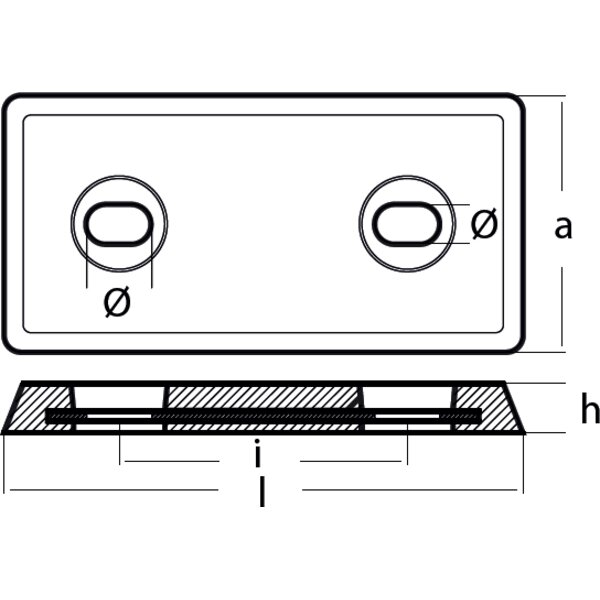

| Ref. | Weight | Material | Referencia recambio original | A measurement | H measurement | Medida I | Medida D Ø | Amount* |
|---|---|---|---|---|---|---|---|---|
| 00263/N | 12,22 kg | Zinc | B-12 | 160 mm | 40 mm | 150 mm | 22x30 mm | 289,93 € |
| 00264 | 8 kg | Zinc | B-9 | 150 mm | 28 mm | 160 mm | 17x25 mm | 188,03 € |
| 00264-1 | 8 kg | Zinc | B-6 | 150 mm | 28 mm | 160 mm | 22x30 mm | 188,03 € |
| 00264-3 | 7,3 kg | Zinc | B-8 | 150 mm | 25 mm | 160 mm | 17x25 mm | 169,08 € |
| 00264N | 14 kg | Zinc | B-14 | 150 mm | 50 mm | 160 mm | 17x25 mm | 394,45 € |
| 00265N | 21 kg | Zinc | B-20 | 200 mm | 55 mm | 160 mm | 22x26 mm | 411,31 € |
Color: Gray
1 X $113.88
